Create a Roku Campaign

Contents

The following document describes how to set up a campaign for Roku. Kochava enhances your install and event data with the Roku ad impression or click metadata directly from Roku to allow for extremely accurate and complete data.

Data Needed Before Beginning Process:

Roku Channel ID

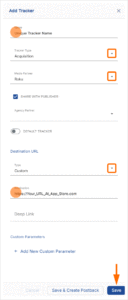

Create a Link for a Roku Install Campaign

Log in to Kochava.
Select the desired Account and App.
Select Engagement > Campaign Manager.

Feature Note: To add this menu item to your Favorites Menu, select the “+” sign that appears when you hover over the menu. The Features Menu provides quick access to your most frequently visited areas of the Kochava UI.

Click + Add (Tracker) or Select Segment Tools (⋮) > Add Tracker.

Enter the Tracker Name.

NOTE: When a Tracker is created, Kochava automatically generates a name for the Tracker. We recommend that you replace the Tracker name at this point with a clear name of your choosing.

Select Tracker Type > Acquisition. (default setting)
Select Media Partner > Roku.
Select Agency Partner. (optional)
Enter the Destination URL.

NOTE: The Destination URL is not relevant and should simply be your website.

Enter a Deep Link. (optional)
Enter any Custom Parameter(s). (optional)
Check Hardcode Cost and enter the amount.
Click Save. (If no further trackers need to be created)
Click Save & Add Another Tracker. (If additional trackers need to be created)
Click Save & Create Postback (to navigate directly to the Partner Configuration page).

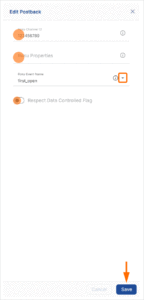

Install Postback Configuration

Select Apps & Assets > Partner Configuration.

Feature Note: To add this menu item to your Favorites Menu, select the “+” sign that appears when you hover over the menu. The Features Menu provides quick access to your most frequently visited areas of the Kochava UI.

Click Add a Configuration.
Select Media Partner > Roku.
Click Go.
Select Install > 🖉 (Edit).
Enter the Roku Channel ID.
Enter the Roku Properties for the product.

NOTE: Roku properties need to be comma separated.

Select the Roku Event Name.
Click Save.

Reengagement Configuration

The information within this section provides the steps necessary to establish a reengagement campaign. If a reengagement campaign does not need to be created, the information in this section may be disregarded.

NOTE: If a reengagement campaign does not need to be set up, but the data associated with post-install events needs to be sent to Roku follow the steps within the Create a Postback Section below.

Create a Reengagement Segment:

Locate the desired Campaign.
Select Campaign Tools (⋮) > Add Segment.
Enter a Segment Name.
Enter a Segment Description. (optional)
Click Add.

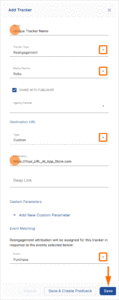

Create a Reengagement Tracker:

Click + Add (Tracker) or Select Segment Tools (⋮) > Add Tracker.
Enter a Tracker Name.
Select Tracker Type > Reengagement.
Select Media Partner > Roku.
Select an Agency Partner. (optional)
Select the Roku Event that will map to the selected Kochava event.
Add Reengagement Event.

BEST PRACTICES: While multiple events can be added to the reengagement tracker it is highly recommended that only 1 event be added for each reengagmeent tracker.

NOTE: A Reengagement event can be added by clicking on the “+” and removed by clicking “X“.

Click Save (If no further trackers need to be created).
Click Save & Add Another Tracker (If additional events need to be created).
Click Save & Create Postback (to navigate directly to the Partner Configuration page).

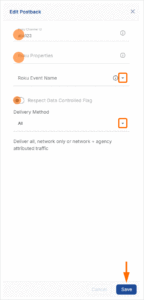

Post-Install Event Postback Configuration:

Select Apps & Assets > Partner Configuration.

Expand Roku Postbacks.
Locate the desired event and Click Create for a new configuration or Edit for an existing configuration.
Enter the Roku Channel ID.
Enter the Roku Properties.
Enter the Roku Event Name.
Click Save.

Standard Post-Install Event List:

Key	Description
first_open	First time the app is opened.
session_start	App Session (First time app session should be sent as First App Session)
trial	A Trial is when a user successfully signs up for a given trial product through Roku Pay, regardless of future subscription or cancellation, based on a 24-hour lookback of exposure to a media campaign, where exposure is the later of either the last impression or last-click
sign_up	Count of a “trial start” event and “subscription start (without trail)” event occurred on a date and time at account level for a given product. This include users who converted from trials, cancels the trial, and who directly paid for the subscription.
subscription	A Subscription is when a user pays for a subscription on Roku Pay within a 24-hour lookback of exposure (impression or click) to a media campaign.
qss	Trigger QSS on Video Views exceeding 5M of contiguous video playback time. A single video view of 60M, for example, will result in a single QSS event.
text_search	Text Search Initiated
voice_search	Voice Search Initiated
video_stream	Video Playback Initiation (Request for Video Stream)
est_transaction	EST Transaction (Entertainment Sell Thru) – a one time purchase
first_video_view	Video View (First time video view will map to Roku FTV)
video_view	Video Metadata (Detailed Content View – Content BOB Info in terms of – Network, Title, Genre, Type, Rating)
ad_initiated	CSAI or SSAI In-Stream Ad Initiated

Macros

View-Through Attribution Macros:

View-through attribution, also known as impression tracking, is the term used when an impression leads to a user action within a certain attribution window. The view-through attribution window is supported for 14-days in order to meet business needs.

URL Parameters	Description	Required/ Optional	Type
Product	Product of impression	Required	Case sensitive string
Properties	Properties of impression	Optional	Comma separated case sensitive strings
IP	IP of impressions (IPv4 and IPv6 supported)	Required for modeled attribution	string
Useragent	Useragent of impression	Operational – Required for modeled attribution	string
DeviceIDs	Device Identifiers of Impression (rida,adid,idga,oaid, etc.)	Required for device attribution	Key value string pairs
Timestamp	Unix timestamp in seconds	Required for all attribution types.	integer
CampaignID	CampaignID of Impression	Required for MMP response	string
CreativeID	CreativeID of Impression	Required for MMP response	string
LineItemID	LineItemID of the creative displayed	Required for MMP response	string
ContentID	Content or Ad Unit ID displayed	Required for MMP response	string
PlacementType	Inventory Type	Required for MMP response	string

Click-Through Attribution Macros:

Click-through attribution, also known as click tracking, is the term used when a click leads to a user action within a certain attribution window. The click-through attribution window is supported for 14-days to meet your business needs.

URL Parameters	Description	Required/ Optional	Type
Product	The Advertiser’s Roku Channel ID	Required	Case sensitive string
Properties	Additional properties to be considered for that click	Optional	Comma separated case sensitive strings
IP	IP of click ( IPv4 and IPv6 supported	Required for modeled attribution	string
Useragent	Broken out into – deviceModel osName osVersion	Operational – Required for modeled attribution	Individual strings
DeviceIDs	Device Identifiers of Impression (rida,adid,idga,oaid, etc.)	Required for device attribution	Key value string pairs
Timestamp	Unix timestamp in seconds	Required for all attribution types.	integer
CampaignID	CampaignID of Click	Required for MMP response	string
CreativeID	CreativeID of Click	Required for MMP response	string
LineItemID	LineItemID of the creative being clicked	Required for MMP response	string
ContentID	Content or Ad Unit ID being clicked.	Required for MMP response	string
Account	Inventory Type	Required for MMP response	string

Updated on February 6, 2025
